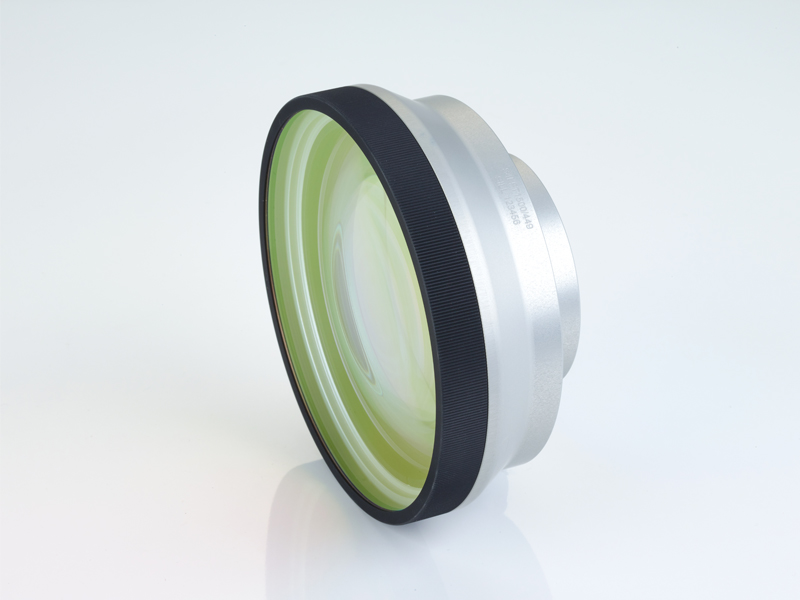

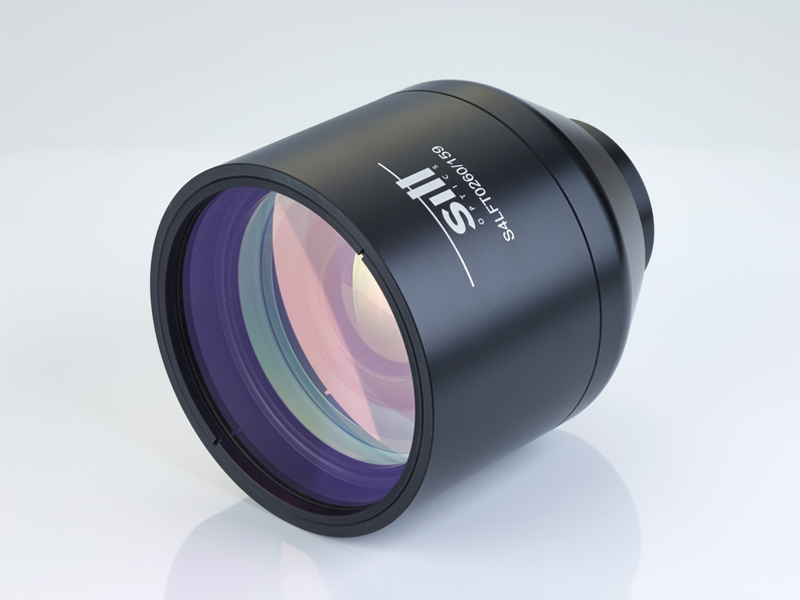

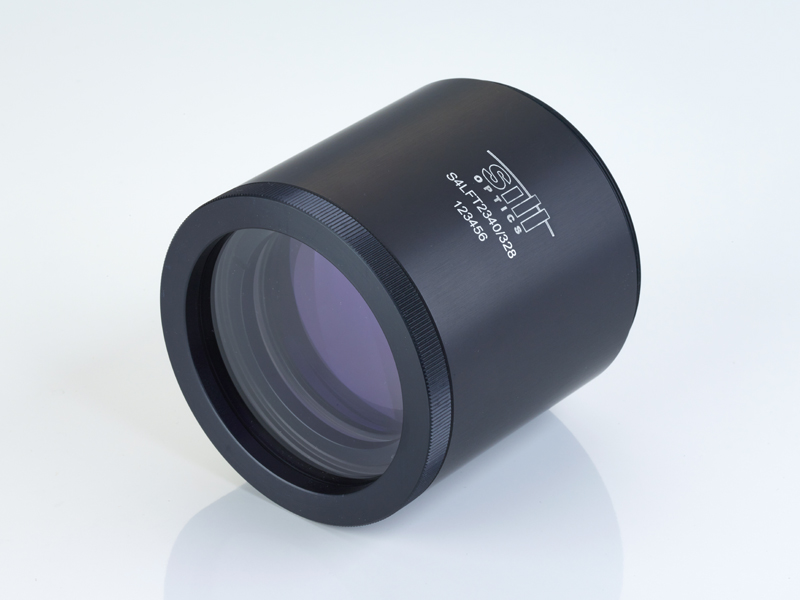

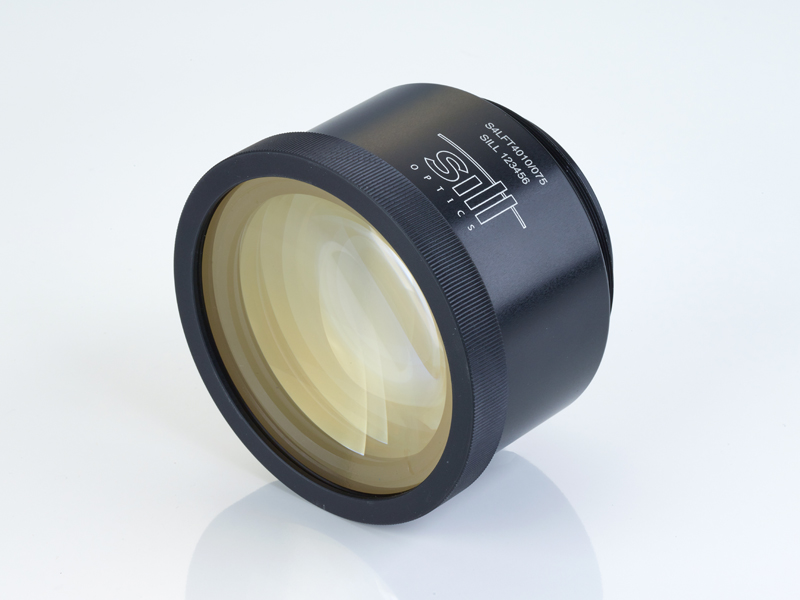

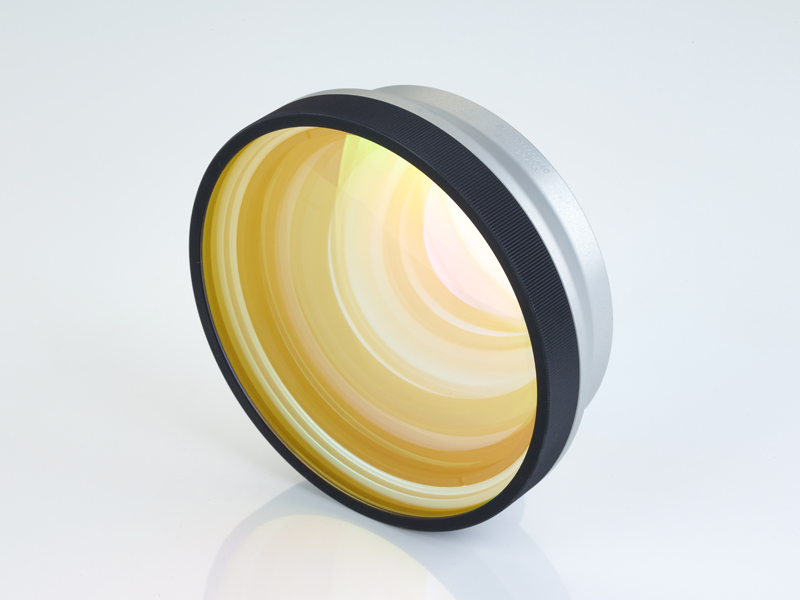

Sill场镜、ƒ-theta 透镜

Sill Optics的产品组合范围从简单的准直和聚焦光学器件到扩束器,再到远心和非远心扫描场镜,涵盖了从193nm到1980nm的完整波长范围。主要涵盖1064nm的固态激光器及其倍频产生的应用。我们还提供专为1030nm-1090nm范围内的碟片激光器和光纤激光器以及800nm-980nm或900nm-1070nm的半导体激光器而设计的场镜。此外,我们的许多场镜、扩束镜和透镜系统都针对短脉冲激光器(皮秒范围)和超短脉冲激光器(飞秒范围)进行了优化。场镜也可用于193nm和248nm的极短波长,也可用于近红外和中红外区域(1550nm和1980nm),多种多光谱扫描镜头可供选择。

光学玻璃场镜

型号波长[nm]焦距[mm]幅面[mm]焦距(1/e²)最大光束Ø[mm]最大远心度误差[°]工作距离[mm]可用于短脉冲或超短脉冲消色差
S4LFT7010/4501000-110010035x3518.3101.5115.0
S4LFT0350/1261064350212x21256.31216412.2
S4LFT1254/1261064254160x16041.41214.9306.5
S4LFT0163/1261064163107x10726.41215181.2
S4LFT0253/1261064254160x16035.21416.7284.9
S4LFT0508/1261064508325x32555.62016.3651.4
S4LFT0635/1261064635370x37051.32516.3732.8
S4LFT0080/12610648039x396.5253.879.4
S4LFT0420/1261064420242x24227.73014.8480.9
S4LFT3254/1261064254115x11516.6308.5297.0
S4LFT1163/081532+1064163102x10213.3/20.01212.7159.0
S4LFT8254/081532+1064254180x18016.6/33.01519.7211.6
S4LFT7012/292515-58910035x359.4101.3101.4
S4LFT5100/12153210069x699.8102.4126.7
S4LFT0300/121532300200x20019.41415.8324.1

熔融石英场镜

型号波长[nm]焦距[mm]幅面[mm]焦距(1/e²)最大光束Ø[mm]最大远心度误差[°]工作距离[mm]可用于短脉冲或超短脉冲
S4LFT0710/328106410060x6039.1511.5120.7
S4LFT0763/3281064163100x10045.6714.6194.1
S4LFT0725/3281064254140x14061.5816.2282.8
S4LFT3167/3281064163100x10032.61011.6200.7
S4LFT4010/328106410035x3519.5101.3129.8
S4LFT1420/3281064420280x28058.51417.3499.2
S4LFT3250/3281064254160x16033.21510.7321.3
S4LFT3162/328106416390x9021.2155.6201.5
S4LFT4127/328106412550x5013.6151.5157.6
S4LFT4065/32810646515x159.415283.1
S4LFT4147/3281064487x76.3152.161.1
S4LFT1655/3281064650410x41063.32022.5581.6
S4LFT1330/3281064330215x21533.32023.5203.4
S4LFT0910/3281064910500x50065.83016.21048.8
S4LFT3161/29253216390x9015.4104.8219
S4LFT4126/29253212553x5312101.6167
S4LFT4010/29253210035x359.8101.5130.2
S4LFT4262/29253216365x6512.7121.7195.4
S4LFT1330/292532330212x21224.31420.3279
S4LFT4066/2925326515x154.8151.585.8
S4LFT4148/292532486x63.2151.860
S4LFT1330/373450330180x18010.72011.1268.2
S4LFT3250/373450241115x11510207.4304.8
S4LFT3170/37345016875x757.6203.2228.3
S4LFT4125/37345012545x456.1201.6160.2
S4LFT3170/07535516390x9011.4104.3221.7
S4LFT4262/07535516365x6510.5102193.7
S4LFT4125/07535512553x538101.1156.9
S4LFT4010/07535510035x356.5101.2132
S4LFT1330/075355330210x21015.41421260.5
S4LFT4067/0753556515x153.1151.881.7
S4LFT4149/075355486x62.1152.169.3
S4LFT4263/19926616370x709.2102.6218.4
S4LFT3170/19926615485x857.7103.8208.1

l激光扩束镜

扩束镜是用于增加或减小光束直径的光学系统。光束直径和激光束发散度的乘积是一个常数,因此保持不变,即增加光束直径意味着将光束发散度减小到相同程度。我们每种类型的扩束镜都提供手动或电动发散度调节功能,所有扩束镜光学元件均由熔融石英组成,即使在高平均功率或高峰值功率的激光下也能提供稳定可靠的性能。对于每个放大倍率,至少有一个无内部重影的扩束镜可供选择,即使在高功率和小入射光束直径下也能提供稳定的工作条件。

可调变焦扩束镜

型号波长[nm]放大倍率输入孔径 [mm]输出孔径[mm]长度[mm]安装螺纹
S6EXZ5310/32810641-3x10.520.085.2C-Mount
S6EXZ5311/32810641-3x10.520.085.2M30x1
S6EXZ5076/32810641-8x10.331.0162.0C-Mount
S6EXZ5310/292 5321-3x10.520.085.2C-Mount
S6EXZ5311/2925321-3x10.520.085.2M30x1
S6EXZ5076/2925321-8x10.331.0162.0C-Mount
S6EXZ5310/0753551-3x10.520.085.2C-Mount
S6EXZ5311/0753551-3x10.520.085.2M30x1
S6EXZ5075/0753551-8x10.331.0162.0C-Mount
S6EXZ0940/574343-3550.9-4x16.028.0 191.0M30x1
S6EXZ5310/574343-3551-3x10.520.085.2C-Mount
S6EXZ5311/574343-3551-3x10.520.085.2M30x1
S6EXZ5075/574343-3551-8x10.331.0162.0C-Mount
S6EXZ5075/1992661-8x10.331.0162.0C-Mount

固定放大倍率扩束镜

型号波长[nm]放大倍率输入孔径[mm]输出孔径[mm]长度[mm]安装螺纹
S6EXK0005/3210640.512.012.044.7M30x1
S6EXK0008/32810640.812.012.044.7M30x1
S6EXK0010/32810641.012.014.044.7M30x1
S6EXK0012/32810641.212.026.044.7M30x1
S6EXK0015/32810641.512.026.044.7M30x1
S6EXK0020/32810642.012.026.044.7M30x1
S6EXK0025/32810642.511.026.044.7M30x1
S6EXK0030/32810643.08.026.044.7M30x1
S6EXK0035/32810643.58.020.044.7M30x1
S6EXK0040/32810644.08.020.044.7M30x1
S6EXK0005/2925320.512.012.044.7M30x1
S6EXK0008/2925320.812.012.044.7M30x1
S6EXK0010/2925321.012.014.044.7M30x1
S6EXK0012/2925321.212.026.044.7M30x1
S6EXK0015/2925321.512.026.044.7M30x1
S6EXK0020/2925322.012.026.044.7M30x1
S6EXK0025/2925322.511.026.044.7M30x1
S6EXK0030/2925323.08.026.044.7M30x1
S6EXK0035/2925323.58.020.044.7M30x1
S6EXK0040/2925324.08.020.044.7M30x1
S6EXK0008/0753550.812.012.044.7M30x1
S6EXK0012/0753551.212.026.044.7M30x1
S6EXK0015/0753551.512.026.044.7M30x1
S6EXK0020/0753552.012.026.044.7M30x1
S6EXK0025/0753552.511.026.044.7M30x1
S6EXK0030/0753553.08.026.044.7M30x1
S6EXK0035/0753553.58.020.044.7M30x1
S6EXK0040/0753554.08.020.044.7M30x1
S6EXK0008/574343-3550.812.012.044.7M30x1
S6EXK0010/574343-3551.012.014.044.7M30x1
S6EXK0012/574343-3551.212.026.044.7M30x1
S6EXK0015/574343-3551.512.026.044.7M30x1
S6EXK0020/574343-3552.012.026.044.7M30x1
S6EXK0025/574343-3552.511.026.044.7M30x1
S6EXK0030/574343-3553.08.026.044.7M30x1
S6EXK0035/574343-3553.58.020.044.7M30x1
S6EXK0040/574343-3554.08.020.044.7M30x1
S6EXP0005/32810640.514.031.085.0M30x1
S6EXP0008/32810640.814.020.085.0M30x1
S6EXP0012/32810641.214.028.085.0M30x1
S6EXP0015/32810641.58.031.085.0M30x1
S6EXP0020/32810642.08.031.085.0M30x1
S6EXP0025/32810642.58.031.085.0M30x1
S6EXP0030/32810643.08.031.085.0M30x1
S6EXP0040/32810644.08.031.085.0M30x1
S6EXP0050/32810645.08.031.085.0M30x1
S6EXP0005/2925320.514.031.085.0M30x1
S6EXP0008/2925320.814.020.085.0M30x1
S6EXP0015/2925321.58.031.085.0M30x1
S6EXP0020/2925322.08.031.085.0M30x1
S6EXP0025/2925322.58.031.085.0M30x1
S6EXP0030/2925323.08.031.085.0M30x1
S6EXP0040/2925324.08.031.085.0M30x1
S6EXP0050/2925325.08.031.085.0M30x1
S6EXP0015/0753551.58.031.085.0M30x1
S6EXP0020/0753552.08.031.085.0M30x1
S6EXP0025/0753552.58.031.085.0M30x1
S6EXP0030/0753553.08.031.085.0M30x1
S6EXP0040/0753554.08.031.085.0M30x1
S6EXP0050/0753555.08.031.085.0M30x1
S6EXP0015/574343-3551.58.031.085.0M30x1
S6EXP0020/574343-3552.08.031.085.0M30x1
S6EXP0025/574343-3552.58.031.085.0M30x1
S6EXP0030/574343-3553.08.031.085.0M30x1
S6EXP0040/574343-3554.08.031.085.0M30x1
S6EXP0050/574343-3555.08.031.085.0M30x1
S6EXP0015/1992661.58.031.085.0M30x1
S6EXP0020/1992662.08.031.085.0M30x1
S6EXP0030/1992663.08.031.085.0M30x1
S6EXP0040/1992664.08.031.085.0M30x1
S6EXP0050/1992665.08.031.085.0M30x1

非球面透镜

非球面透镜 非球面透镜

裸片非球面镜

型号波长 [nm]焦距 [mm]通光孔径[mm]中心厚度[mm]工作距离[mm]
S1ADX0540/328106440052.08.0395.2
S1ADX0330/328106430030.09.0294.7
S1ADX0325/328106425038.18.9245.2
S1ADX0320/328106420038.18.9194.8
S1ADX0316/328106415030.09.6144.4
S1ADX0312/328106412038.110.3114.0
S1ADX0310/328106410038.111.093.7
S1ADX0380/32810648038.112.073.1
S1ADX0370/32810647238.111.063.6
S1ADX0260/32810646030.011.353.5
S1ADX0250/32810645030.013.742.1
S1ADX0240/32810644030.015.031.3
S1ADX0230/32810643030.016.020.9
S1ADX0220/32810642025.013.213.3

已安装底座非球面镜

型号波长[nm]焦距[mm]焦点尺寸1/e²[µm]通光孔径[mm]中心厚度[mm]工作距离[mm]
S6ASS2020/292532252.425.013.519.3
S6ASS2060/292532623.040.032.047.9
S6ASS5300/2925321005.441.016.086.7
S6ASS6151/2925321507.256.020.0135.0
S6ASS6200/2925322006.654.015.0188.5
S6ASS2020/075355251.625.017.017.9
S6ASS2060/075355602.840.030.046.5
S6ASS5120/0753551145.648.020.0104.4
S6ASS2020/199266241.425.017.017.1
S6ASS2060/199266572.240.030.043.9
S6ASS5120/1992661094.648.020.099.1

聚焦透镜、消色差透镜

多元件镜头系统可最大限度地减少单镜头的成像误差,并为非扫描应用提供精确聚焦,您必须区分单色和消色差系统。单色系统仅针对特定波长进行校正。因此它们最适合激光应用。特别是空气间隔设计的熔融石英透镜优选用于高功率激光的准直或聚焦。我们提供安装在熔融石英和光学玻璃两种规格。消色差系统必须由具有不同玻璃类型和色散的透镜组成。只有匹配的组合才能校正色差,尤其是在可见光范围内。通常组件是胶合的。这导致消色差系统的损坏阈值降低,从而限制了平均功率小于200W的激光的使用。

聚焦透镜 聚焦透镜

型号波长1[nm]波长2[nm]材料焦距[mm]数值孔径F数最大视场[mm]波长1放大率波长2放大率窗口镜厚度窗口镜材料工作距离
S6ASS2243/1261064-光学玻璃40.50.41.40.71无限-6.0熔融石英50.7
S6ASS2242/0815901064光学玻璃40.0  0.41.40.71无限无限50.7熔融石英6.0
S6ASS2224494671光学玻璃22.00.51.00.08无限无限--11.6
S6ASS2255422-熔融石英45.00.41.20.2710.0-19.1熔融石英63.4
S6ASS2256422-熔融石英44.90.41.20.2710.0-19.1N-BK763.8
S6ASS2258397422光学玻璃44.80.41.10.2810.010.019.1N-BK762.3
S6ASS2258/006397422光学玻璃45.50.41.20.2910.010.06.3熔融石英60.5
S6ASS2241395729光学玻璃66.90.31.70.220.020.06.0熔融石英55.7
S6ASS2241/045395729光学玻璃66.90.31.80.1920.020.06.0熔融石英55.7
S6ASS2341370-光学玻璃82.10.22.10.26.0-6.0熔融石英55.7
S6ASS2245369-熔融石英40.00.41.30.35无限-8.0熔融石英39.3
S6ASS2246369-熔融石英41.20.41.30.36无限-4.3熔融石英38.7
S6ASS2247369493熔融石英50.10.22.50.958.078.02.0蓝宝石49.4
S6ASS2247/389313397熔融石英49.00.22.50.958.279.02.0蓝宝石48.2
S6ASS2248313397熔融石英49.00.31.60.2715.0145.03.0熔融石英46.5
